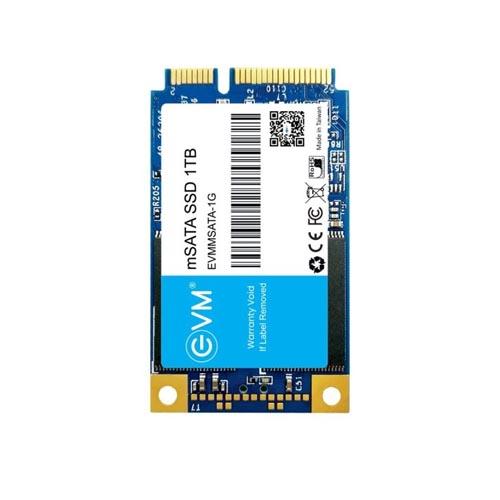

EVM 1TB mSATA SSD EVMMS/1TB
Overview :
(1) Capacity 1TB
(2) Form Factor mSATA
(3) NAND FLASH 3D TLC
(4) Interface SATA 6.0 Gbps interface
(5) Sequential Read (max.) Sequential Read: Write: up to 520MB/s 500MB/s
(6)Maximum 4K Read/ Write up to 79,000/18,000 IOPS
(7) Power Consumption 0.195W idle / 0.5W
(8) Storage Temperature -40*C to 85*C
(9) Operating Temperature 0*C to 70*C
(10) Dimensions 50.8mm x 29.85mm x 4.85mm
(11) Weight 6.7g
(12) Vibration operating 2.17G Peak(7-800Hz)
(13) Vibration non-operating 20G Peak ( 10-2000Hz)
(14) Total Bytes Written (TBW) 512GB- 200TB
(15) Warranty 5 Years Warranty
Specification :
| Capacity | 1TB |
| Read Speed | 520MB/s |
| Write Speed | 500MB/s |
| Warranty | 5 Years |
| Form Factor | M.2 2280 |
| Interface | SATA |
