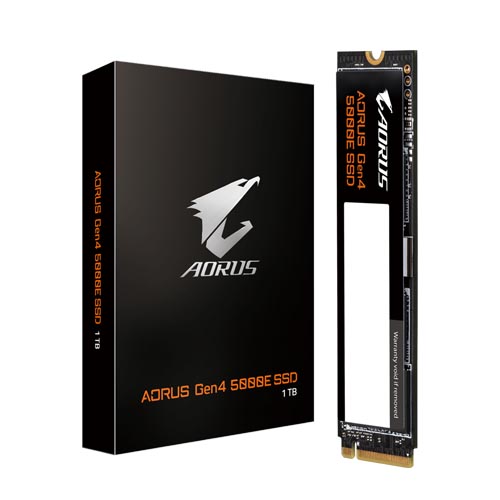

Gigabyte AORUS Gen4 5000E 1TB M.2 NVMe SSD AG450E1024-G
Overview :
Level up your gaming experience
Built with a high-quality controller and 3D TLC NAND flash, AORUS Gen4 5000E SSD delivers up to 5,000MB/s sequential read and 4,600MB/s sequential write performance. By utilizing Host Memory Buffer technology, the SSD controller can access the host DRAM without performance loss. As for features, AORUS Gen4 5000E SSD supports TRIM, SMART, and Over-Provision technologies to improve the reliability and durability of SSDs. AORUS Gen4 5000E SSD allows users to enjoy a smoother and faster gaming experience with more power efficiency.
+ PCIe 4.0 x4, NVMe 1.4 interface
+ Sequential Read Speed : up to 5,000MB/s**
+ Sequential Write speed : up to 4,600MB/s**
+ HMB (Host Memory Buffer) supported
+ TRIM & S.M.A.R.T supported
+ Energy-efficient
NAND Flash Selected for High Performance
Selected High Speed 3D TLC NAND Flash (1600+ MT/s)
The ultra high speed─1600+ MT/s throughput─3D TLC NAND, are selected by critical criteria, combined with the AORUS Gen4 5000E SSD’s firmware optimizations, lead to superior performance.
Improve efficiency & responsiveness
Equipped with a robust combination of controller and new generation 3D TLC NAND, AORUS Gen4 5000E SSD delivers blazing speeds: up to 5,000 MB/s for sequential read, and up to 4,600MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is up to 30% faster than PCIe 3.0 SSDs. AORUS Gen4 5000E SSD puts you in the computing fast lane.
Host Memory Buffer (HMB)
The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.
Power Saving While Operating
AORUS Gen4 5000E SSD leverages a controller which produces lower power consumption for all the high-performance computing needs. Compared with regular PCIe 4.0 x4 SSD, AORUS Gen4 5000E SSD reduces about 30% power while operating. The power consumption of AORUS Gen4 5000E SSD is notably improved.
Specification :
| Interface | PCI-Express 4.0×4, NVMe 1.4 |
| Form Factor | M.2 2280 |
| Total Capacity | 1TB (1024GB) |
| NAND | 3D TLC NAND Flash |
| Sequential Read speed | Up to 5,000 MB/s |
| Sequential Write speed | Up to 4,600MB/s |
| Dimension | 80 x 22 x 2.3 mm |
| Mean time between failure (MTBF) | 1.5 million hours |
| Power Consumption (Active) | Average : R : 4.2W / W : 4.3W |
| Power Consumption(Idle)(ASPT on) | 20mW |
| Temperature (Operating) | 0°C to 70°C |
| Temperature (Storage) | -40°C to 85°C |
| Warranty | 5 Years |
