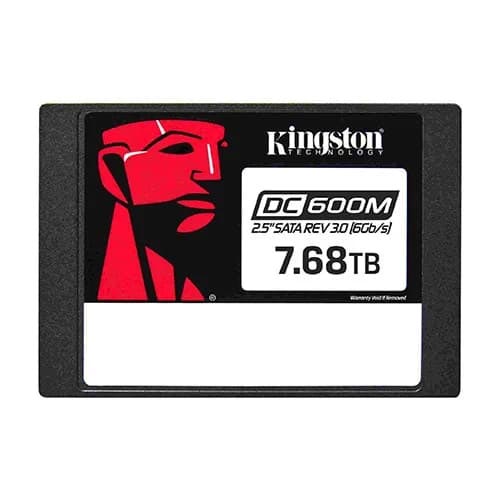

Kingston DC600M 7.68TB Enterprise SSD SEDC600M/7680G
Overview :
- Designed for data center environments
- Hardware-based power loss protection
- Latency and IOPS consistency
- Capacities 7.68TB
Kingston’s DC600M SSDs is 4th generation data center SATA 3.0, 6Gbps SSDs utilizing 3D TLC NAND intended for “mixed use” server workloads. Both are well suited for a wide variety of server applications and include on-board power loss protection via hold-up capacitors. DC600M is designed to protect data against unexpected power failure and to ensure the drive will successfully re-initialize on the next power-up of the system. Designed to deliver low latency and IO consistency for system integrators, hyperscale data centers, and cloud service providers.
Specification :
| Form factor | 2.5 inch |
| Interface | SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s) |
| Capacities | 7.68TB |
| NAND | 3D TLC |
| DRAM Cache | Yes |
| Sequential read/write | 7.68TB – 560MBs/530MBs |
| Steady-state 4k random read/write | 7.68TB – 94,000/34,000 IOPS |
| Hot-plug capable | Static and dynamic wear levelling |
| Enterprise SMART tools | Reliability tracking, usage statistics, life remaining, wear levelling, temperature |
| Hardware-based power loss protection | Yes |
| Endurance (TBW) | 7.68TB – 14016TBW |
| Power consumption | Idle 1.30W / Average 1.45W / Max read 1.6W / Max write 3.6W |
| Storage temperature | -40℃ ~ 85℃ |
| Operating temperature | 0℃ ~ 70℃ |
| Dimensions | 69.9mm x 100mm x 7mm |
| Weight | 92.34g |
| Vibration operating | 2.17G Peak (7–800Hz) |
| Vibration non-operating | 20G peak (10–2000Hz) |
| MTBF | 2 million hours |
| UBER | ≤10 -17 |
