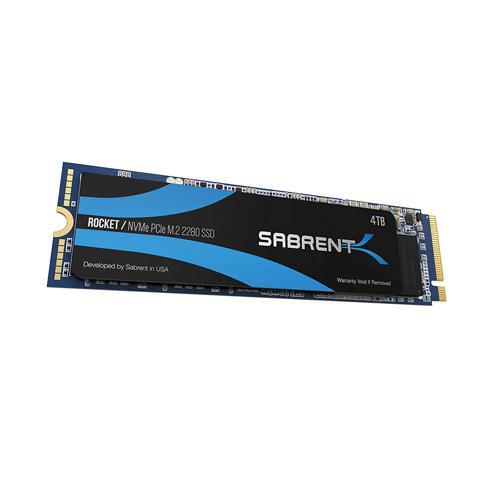

Sabrent 4TB ROCKET NVMe PCIe Gen3 x 4 M.2 2280 Internal SSD Solid State Drive SB-ROCKET-4TB
Overview :
The Sabrent 4TB ROCKET NVMe PCIe M.2 2280 Internal SSD High-Performance Solid State Drive (SB-ROCKET-4TB) delivers all the advantages of flash disk technology with PCIe Gen3 x4 interface and it is fully compliant with the standard Next Generation Form Factor (NGFF), commonly-known as M.2.
Based on 3D TLC NAND Flash memory, its performance speeds can reach up to 3450 MB/s (read) and 3000 MB/s (write).
Power consumption is much lower than traditional hard drives, making it the best-embedded solution for new systems.
Features:
• M.2 PCIe Gen3 x 4 Interface.
• PCIe 3.1 Compliant / NVMe 1.3 Compliant.
• Power Management Support for APST / ASPM / L1.2.
• Supports SMART and TRIM commands. Supports ONFi 2.3, ONFi 3.0, ONFi 3.2 and ONFi 4.0 interface.
• Advanced Wear Leveling, Bad Block Management, and Over-Provision.
• All Sabrent SSDs come with FREE Sabrent Acronis True Image for Sabrent Software for easy Cloning
Package contents:
• 4TB NVMe PCIe M.2 2280 SSD.
• User Manual
Specification :
| Model | DB-ROCKET-4TB |
| Capacity | 4TB |
| Interface | PCIe Gen3x4 |
| NAND | BiCS3/BiCS4/B16 |
| CTL | E12/E12S |
| Certifications | CE,FCC,BSMI,RoHS |
| Max Sequential Read | 3450(MB/s) |
| Max Sequential Write | 3000(MB/s) |
| Rndm4K QD32(IOPS)Read | 580K |
| Rndm4K QD32(IOPS)Write | 650K |
| Power Consumption R/W | 8.0/6.8 |
| Power Supply | 3.3V |
| Form Factor | M.2 2280 |
| Height | 3.7mm |
| Width | 22mm |
| Length | 80mm |
| Operating Temperature | 0-70C |
| Storage Temperature | -40-85C |
| MTBF | 18,00,000 |
| Shock Resistant | 1500G |
| Data Correction | LDPC |
| Warranty | 5 Years |
