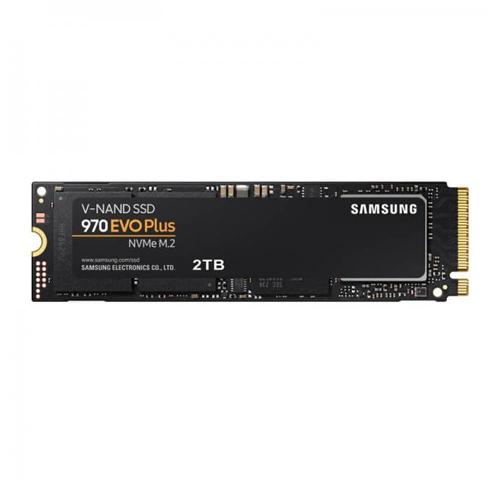

SAMSUNG 970 EVO Plus M.2 2280 2TB PCIe NVMe SSD MZ-V7S2T0BW
Overview :
Always Evolving SSD
The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by Samsung’s latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for superb computing. In capacities up to 2TB, with reliability of up to 1,200 TBW.
Level up Performance
The 970 EVO Plus can reach sequential read/write speeds up to 3,500/3,300 MB/s, up to 53% faster than the 970 EVO. Samsung’s latest V-NAND—which brings greater NAND performance and higher power efficiency—along with optimized firmware, a proven Phoenix controller, and Intelligent TurboWrite boost speeds.
Design Flexibility
The next advancement in NVMe SSD. The 970 EVO Plus fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung†s innovative technology empowers you with the capacity to do more and accomplish more.
Exceptional Endurance
The new standard in sustainable performance. Get up to 1,200 TBW4with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung’s quality.
Unparalleled Reliability
Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable remarkable heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to help minimize performance drops.
Samsung Magician
Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.
Specification :
| Model | Samsung SSD 970 Evo Plus |
| Series | 970 EVO |
| Capacity | 2TB |
| Application | Client PCs |
| Interface | PCIe Gen 3.0 x 4, NVMe 1.3 |
| Dimension (WxHxD) | 80.15 x 22.15 x 2.38 (mm) |
| Sequential Read | Up to 3,500 MB/s |
| Sequential Write | Up to 3,300 MB/s |
| NAND Flash | Samsung V-NAND 3-bit MLC |
| TRIM Support | Supported |
| S.M.A.R.T Support | Supported |
| Cache Memory | Samsung 2GB Low Power DDR4 SDRAM |
| Encryption Support | AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) |
| WWN Support | Not supported |
| GC (Garbage Collection) | Auto Garbage Collection Algorithm |
| Device Sleep Mode Support | Yes |
| Voltage | 3.3 V ± 5 % Allowable voltage |
| Reliability (MTBF) | 1.5 Million Hours Reliability (MTBF) |
| Operating Temperature | 0 – 70 ℃ Operating Temperature |
| NVMe | Yes |
| Gaming SSDs | Yes |
| Form Factor | M.2 (2280) |
| Warranty | 5 Years |
