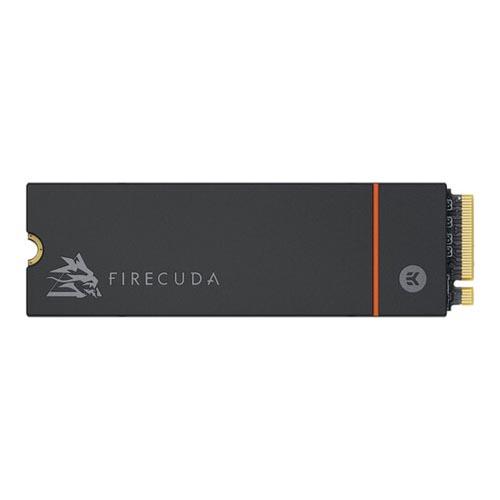

Seagate FireCuda 530 Series 2TB M.2 PCIe 4.0 x4 NVMe SSD with Heatsink ZP2000GM3A023
Overview :
Increase the storage of your PC with the Seagate 2TB FireCuda 530 PCIe 4.0 x4 NVMe M.2 Internal SSD with Heatsink. Utilizing the PCIe 4.0 x4 interface, the FireCuda 530 provides up to twice the performance of the previous gen PCIe 3.0 and up to 12 times the performance of SATA SSDs. The FireCuda 530 is designed to handle the power and performance needed for accelerated gaming and content-creation apps. With read speeds up to 7300 MB/s and write speeds up to 6900 MB/s, you can experience quick loading times, putting you in your games faster. The built-in heatsink is built from a high-grade aluminum block to provide the cooling needed to reduce thermal throttling. This FireCuda 530 with heatsink is also compatible with the Sony PlayStation 5, meeting its specs on performance and dimensions.
Heatsink Included
This FireCuda 530 features a custom heatsink. Built from a high-grade aluminum block with a finely textured anodized finish, the heatsink helps maximize cooling efficiency. The built-in heatsink also helps minimize thermal throttling while maximizing peak performance for longer periods of time.
Plug and Play Expansion for PS5
The FireCuda 530 with heatsink is compatible with PS5 consoles and meets the PS5 specs on performance and dimensions. The FireCuda’s built-in heatsink and SSD combo makes for an easy drop-in expansion solution with no additional parts needed.
PlayStation 5 Beta System Software Required
S.M.A.R.T. Support
The FireCuda 530 includes self-monitoring, analysis, and reporting technology (S.M.A.R.T.) that actively detects various indicators of drive reliability with the intent to predict imminent hardware failures. This system notifies you so that you can take proper action to prevent data loss.
TRIM Support
To maintain proper performance, TRIM command set is enabled. This wipes blocks of data that the operating system considers no longer usable, keeping write operations speedy and actively reducing latency. This keeps your system and games running as efficiently as possible.
3D TLC NAND Flash
Supporting enhanced speeds for increased performance, the FireCuda 530 integrated 3D TLC NAND Flash protocols that allow information to be stored and recalled efficiently. This allows the drive to act and react faster, giving you that lightning fast performance boost for your system.
Compatibility
You can install the FireCuda 530 in various Windows 10 and Linux computers with ease for enhanced performance capabilities.
Specification :
| Performance | |
| Write Speed | Sequential: 6900 MB/s 128 KB Files |
| Random: 1,000,000 IOPS 4 KB Files | |
| Read Speed | Sequential: 7300 MB/s 128 KB Files |
| Random: 1,000,000 IOPS 4 KB Files | |
| Physical | |
| Drive Type | SSD |
| Form Factor | M.2 2280 |
| Flash Memory Type | Tri-Level Cell (TLC) |
| SMART Support | Yes |
| TRIM Support | Yes |
| Reliability / Data Integrity | |
| Endurance (Total Bytes Written) | 2550 TB |
| Mean Time Between Failures (MTBF) | 1.8 Million Hours |
| Electrical | |
| Power Draw | 8.0 W (Active) |
| 24.00 mW (Idle) | |
| 5.0 mW (Standby) | |
| Environmental | |
| Storage Shock | 1500 G |
| Operating Temperature | 32 to 158°F / 0 to 70°C |
| Storage Temperature | -40 to 185°F / -40 to 85°C |
| General | |
| Certifications | RoHS, as per Manufacturer |
| Dimensions (W x H x D) | 1 x 0.43 x 3.16″ / 24.2 x 11.04 x 80.15 mm |
| Weight | 1.7 oz / 47 g |
| Packaging Info | |
| Package Weight | 0.26 lb |
| Box Dimensions (LxWxH) | 5.3 x 4.2 x 1″ |
