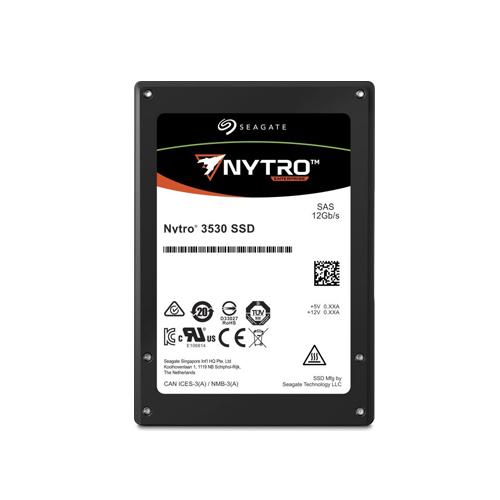

Seagate Nytro 1.6TB 3530 Light Endurance SAS SSD XS1600LE10003
Overview :
The Seagate® Nytro® 3000 SAS SSD Series includes the next generation of high-capacity, high-performance SAS SSDs designed with endurance offerings optimised for demanding enterprise applications and improved TCO.
Enhanced Reliability, Data Protection, and Security
Seagate has decades of enterprise SAS expertise in mission-critical applications. The Nytro 3000 SSD Series helps deliver exceptional data protection and reliability with full internal and external data path protection (T10 DIF), advanced ECC algorithms, media lifecycle management, and other techniques for extending flash memory life. Advanced power-loss data protection helps maintain data integrity in the event of unexpected power interruptions.Advanced security levels to prevent unauthorised access to a drive and safeguard stored data include Seagate Downloads & Diagnostics, TCG-compliant Self-Encrypting Drive and government-grade FIPS/Common Criteria tamper-resistant drive.
Industry-Leading Performance up to 2,100 MB/s
The Nytro 3000 SSD Series delivers ultra-fast, consistent, and easily scalable performance thatsaturates dual 12 Gb/s SAS bandwidth, providing an effective 24 Gb/s interface with dual-portdynamic configurations. By removing the storage bottleneck, overall system and applicationresponsiveness is significantly improved.
High-Capacity Solution With Multiple Endurance Offerings
Enterprise applications have different storage workload requirements. Databases orvirtualisation with a typically mixed read/write workload require the highest random read/writeIOPS, ultra-low latency, and high endurance. Content streaming applications demand highsequential read throughput and high storage density at the lowest cost per gigabyte. The Nytro3000 SSD Series offers an industry-leading range of capacities up to 15 TB in a 2.5-inch formfactor to increase enterprise storage density in data centres. It also enables lower TCO byoffering endurance categories to match cost and performance requirements of all enterprise workloads.
Specification :
| Capacity | 1.6 TB |
| Standard Model Number | XS1600LE10003 |
| Features | |
| Interface | Dual 12 Gb/s SAS |
| NAND Flash Type | 3D eMLC |
| Form Factor | 2.5 in × 7 mm |
| Performance — Single Port 12 Gb\s | |
| Sequential Read (MB/s) Sustained, 128 KB | 1100 |
| Sequential Write (MB/s) Sustained, 128 KB | 970 |
| Random Read (IOPS) Sustained, 4 KB | 2,00,000 |
| Random Write (IOPS) Sustained, 4 KB | 80,000 |
| Random 30% Write (IOPS) Sustained, 4 KB | 1,80,000 |
| Performance — Dual Port 12 Gb\s | |
| Sequential Read (MB/s) Sustained, 128 KB | 2,100 |
| Sequential Write (MB/s) Sustained, 128 KB | 1,400 |
| Random Read (IOPS) Sustained, 4KB | 2,40,000 |
| Random Write (IOPS) Sustained, 4KB | 80,000 |
| Random 30% Write (IOPS) Sustained, 4KB | 1,80,000 |
| Endurance/Reliability | |
| Lifetime Endurance (Drive Writes per Day) | 3 |
| Total Bytes Written (TB) | 8,700 |
| Non-recoverable Read Errors per Bits Read | 1 per 10E18 |
| Annualised Failure Rate (AFR) | 0.35% |
| Limited Warranty (years) | 5 |
| Power Management | |
| +5/+12 V Max Start Current (A) | 0.80/0.21 |
| Average Idling Power (W) | 4.4 |
| Physical | |
| Height (mm/in, max) | 7 mm/0.276 in |
| Width (mm/in, max) | 70.1 mm/2.76 in |
| Depth (mm/in, max) | 100.45 mm/3.955 in |
| Weight (lb/g) | 85 g/0.187 lb |
| Carton Unit Quantity | 10 |
| Cartons per Pallet / Cartons per Layer | 90/9 |
