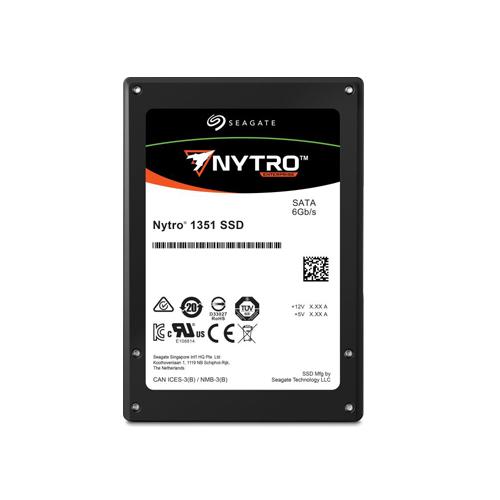

Seagate Nytro 1351 240 GB Light Endurance Enterprise SSD XA240LE10003
Overview :
The Seagate® Nytro® 1000 SATA SSD Series is a cost-effective, enterprise-grade solution for data centre and cloud server applications. It is designed to deliver high, sustained, and consistent performance for improved QoS and enhanced user experience.
SSDs with the SATA storage interface meet the high performance and reliability requirements without disrupting legacy storage infrastructures or involving additional investments in software and hardware.
Optimised for Performance, Integration, and Cost
Boost the performance of applications that require faster random access performance
Maintain fast, consistent performance for read-intensive and mixed workloads
Take advantage of easy deployment and more processing power without investment in new hardware
Require less energy to run 24×7, and save on cooling and overall energy cost
Wide Range of Storage and Security Options
Receive endurance, security, and capacity options for enterprise applications
Choose the capacity and endurance to fit a range of application and workload needs
Achieve peace of mind through Seagate Secure™ data protection
Enterprise-Grade Feature Set
Maintain high data integrity in the event of unexpected power loss
Leverage Seagate’s reliability and system compatibility test infrastructure
Attain end-to-end data protection with Seagate SHIELD™ and Seagate RAISE technologies
Key Features and Benefits :
SATA 6 Gb/s interface for easy deployment
Seagate DuraWrite™ lossless data reduction technology
Tunable capacity for performance or capacity-optimised SSD solutions
Seagate Secure options
Power loss data protection circuit
Enterprise-class reliability with 2Mhr. MTBF and a 5-year limited warranty
Specifications :
| Capacity | 240GB |
| Standard Model Numbers | XA240LE10003 |
| Features | |
| Interface | SATA 6Gb/s |
| NAND Flash Type | 3D TLC |
| Form Factor | 2.5 in × 7 mm |
| Performance | |
| Sequential Read (MB/s) Sustained, 128 KB | 560 |
| Sequential Write (MB/s) Sustained, 128 KB | 320 |
| Random Read (IOPS) Sustained, 4 KB QD32 | 55,000 |
| Random R70R (IOPS) Sustained. 4KB QD32 | 32,000 |
| Random Write (IOPS) Sustained, 4 KB QD32 | 28,000 |
| Average Read Latency (μs), 4 KB QD1 | 155 |
| Average Write Latency (μs), 4 KB QD1 | 40 |
| Endurance/Reliability | |
| Lifetime Endurance (Drive Writes per Day) | 1 |
| Total Bytes Written (TB) | 435 |
| Non-recoverable Read Errors per Bits Read | 1 per 10E17 |
| Mean Time Between Failures (MTBF, hours) | 20,00,000 |
| Limited Warranty (years) | 5 |
| Power Management | |
| +5/+12V Overall Average Active Power (W) | 2.3 |
| Average Idling Power (W) | 1.1 |
| Environmental | |
| Temperature, Operating Internal (°C) | 0°C – 70°C |
| Temperature, Non-operating (°C) | -40°C – 85°C |
| Temperature Change Rate/Hr, Max (°C) | 20 |
| Shock, 0.5 ms (Gs) | 1,000 |
| Physical | |
| Height (mm/in, max) | 7 mm/0.276 in |
| Width (mm/in, max) | 70.1 mm/2.76 in |
| Depth (mm/in, max) | 100.25 mm/3.947 in |
| Weight (lb/g) | 77 g/0.169 lb |
| Carton Unit Quantity | 10 |
