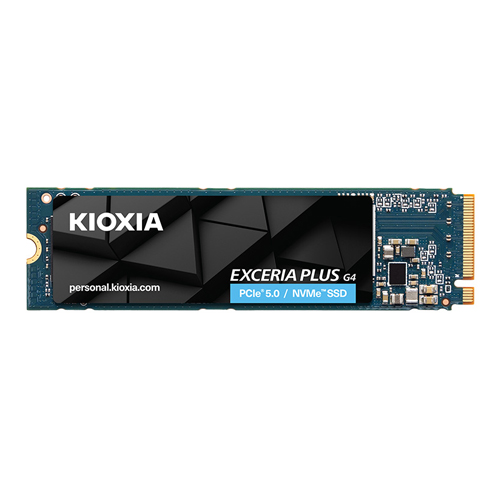

Kioxia Exceria Plus G4 1TB NVMe SSD LVD10Z001TG8
Overview :Â
Get an enhanced PC experience with the all-new KIOXIA EXCERIA PLUS G4 SSD series featuring a state-of-the-art PCIe® 5.0 interface. Offering improved performance and up to 2TB of capacity for gamers and video editors, the EXCERIA PLUS G4 series delivers low power consumption and reduced heat generation.
- BiCS FLASHâ„¢
- NVMeâ„¢ 2.0c Technology
- M.2 2280 Form Factor
- PCIe® Gen5 x4
- SSD Utility Management Software
Speed Only PCIe® 5.0 Can Provide
Featuring the latest and greatest PCIe® 5.0 interface, the EXCERIA PLUS G4 SSD series delivers excellent transfer speeds of up to 10,000MB/s for sequential reads and 8,200MB/s for sequential writes. Whether you are loading the latest game or editing the next viral video, this new series will provide the speed you need.
Power Efficiency Prioritized
The EXCERIA PLUS G4 SSD series delivers significantly improved performance without excessive energy or cooling requirements. Designed with efficiency in mind, EXCERIA PLUS G4 SSDs offer low power consumption, reducing the heat generated in your system. These SSDs delivers up to approximately 80% more power efficiency at max sequential read speed over the previous generation EXCERIA PLUS G3 series.*7
Advanced Heat Dissipation
EXCERIA PLUS G4 SSDs feature innovative product labels to enhance heat dissipation for advanced performance stability.
Cutting-Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASHâ„¢ and a vertically stacked cell structure, delivering a cutting edge storage experience.
SSD Utility Management Software
The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!
We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.
Specification :Â
| Capacity | 1TB |
| Form Factor | M.2 Type 2280-S3-M |
| Interface | PCI Express® Base Specification Revision 5.0 (PCIe®) |
| Flash Memory type | BiCS FLASHâ„¢ TLC |
| Interface Maximum Speed | 128 GT/s (PCIe® Gen5 x4) |
| Dimension (Max: LxWxH) | 80.15 x 22.15 x 2.38 mm |
| Interface Protocol | NVM Expressâ„¢ Base Specification 2.0c |
| Weight | 1TB: 5.6 g (typ.) |
| Performance | |
| Max Sequential Read Speed*1 | 10,000 MB/s |
| Max Sequential Write Speed*1 | 1TB: 7,900 MB/s |
| Max Random Read Speed*2 | 1,300,000 IOPS |
| Max Random Write Speed*2 | 1,400,000 IOPS |
| Endurance: TBW*3 | 1TB: 600 TB |
| MTTF | 1.5 million hours |
| Operating environment / protection performance | |
| Operating Temperature | 0 ℃ (Ta) to 85 ℃ (Tc) |
| Storage Temperature | -40 ℃ to 85 ℃ |
| Certification | RoHS compliant*5 |
| Shock Resistance | 9.806 km/s2 {1,000 G} 0.5 ms half sine wave |
| Vibration | 25.4mm peak-to-peak (10Hz to 20Hz), 20G peak (20Hz to 2000Hz), (20min /Axis) x 3 Axis |
| Supply Voltage | 3.3 V ±5 % |
| Power Consumption | PS3: 50 mW (typ.) |
| PS4: 5 mW (typ.) | |
| Power Consumption (Active) | 5.3 W (typ.) |
| Compatibility | |
| Connector Type | M.2 M key Socket |
| Target Applications | Client desktops and laptops |
| Others | |
| Services and Support : Up to 5-year manufacturer’s warranty*4 | |
| Performance Optimization | TRIM, Idle Time Garbage Collection, Host Memory Buffer |
| Product Info | 1TB PN: LVD10Z001TG8 |
